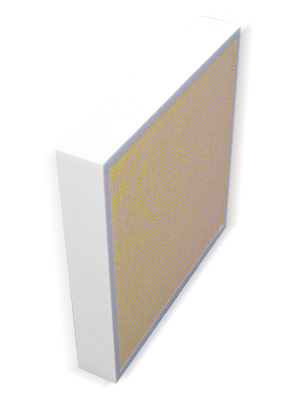

Mini-Pleat Filter
Product Description
- Media, spacer beads and frame material are 100% polypropylene
- Media is single web, non-shedding, gradient density
- Pleat spacer thermally bonded to both sides of media, color coded
for efficiency
- Frame durable hard plastic
- All filter components are anti-microbial by nature
- Water proof construction
- ASHRAE 52.2-1999 tested and certified
- UL900 Class 2 U.S. tested and certified
Our Mini-pleat pack in 1, 2, 4 or 6 inches is your choice when you need
high efficiency filtration in a small design.
- Underwriters Laboratories Classification - UL900 Class I U.S. - Class
II Canada
- Inorganic construction will not promote microbial growth
- Continuous operating temperature limitations: 180°F (82°C)
- Filters can be operated up to 125% of manufacturers rated airflow
- Manufacturers recommended final resistance is 1.50? W.G.
Standard Sizes
- 16×20x4 — 16×25x4
- 20×20x4 — 20×25x4
- 24×24x4 — 24×20x4 — 24×12x4
Dimensions in inches
Custom Sizes
Available upon request
Other available sizes:
- 1-inch
- 2-inch
- 4-inch
- 4-inch with header frame
- 6-inch with header frame
